MCP47CVB01-E/UN - Microchip

Description: Digital to Analog Converters - DAC I2C, Single Channel, 8-Bit, Volatile

Download MCP47CVB01-E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

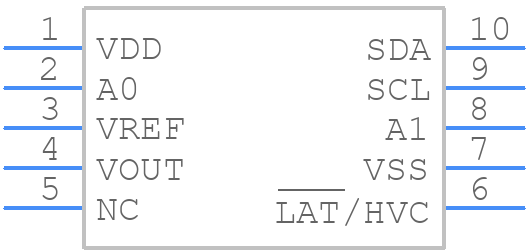

MCP47CVB01-E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CVB01-E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (UN) [MSOP]
click to zoom
3D Models
MCP47CVB01-E/UN - Microchip - 3D model - Small Outline Packages - (UN) [MSOP]
click to zoom

MCP47CVB01-E/UN Details

  • Manufacturer Part Number:

    MCP47CVB01-E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    0.62 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP47CVB01-E/UN Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD before applying VREF. This ensures that the internal voltage regulator is powered up correctly and the device operates within specifications.
  • To ensure accurate voltage output, it is essential to use a high-precision external voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the MCP47CVB01-E/UN is 10 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • The MCP47CVB01-E/UN can be programmed using a 3-wire SPI interface. The device requires a clock signal (SCK), a chip select signal (CS), and a data input signal (SDI). The programming sequence involves sending a command byte, followed by one or more data bytes, depending on the desired configuration.
  • The VSS pin is the ground pin for the device and should be connected to the system ground. It is essential to connect VSS to a low-impedance ground plane to ensure proper device operation and to minimize noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47CVB01-E/UN Overview

Use the download button to access the MCP47CVB01-E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
