MCP47CVB02T-E/MG - Microchip

Description: Digital to Analog Converters - DAC I2C, Dual Channel, 8 -Bit, Volatile

Download MCP47CVB02T-E/MG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

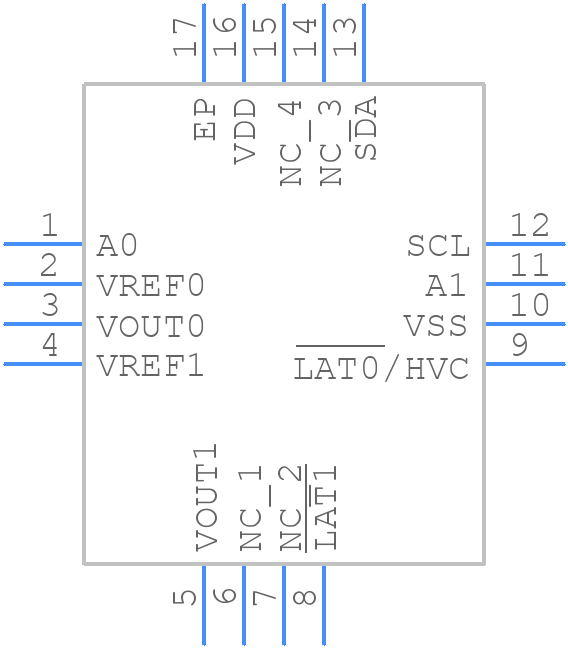

Symbol
MCP47CVB02T-E/MG - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CVB02T-E/MG - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MG) 16-Pin QFN
click to zoom
3D Models
MCP47CVB02T-E/MG - Microchip - 3D model - Quad Flat No-Lead - (MG) 16-Pin QFN
click to zoom

MCP47CVB02T-E/MG Details

  • Manufacturer Part Number:

    MCP47CVB02T-E/MG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    QFN-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2019-06-13

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    0.72 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MCP47CVB02T-E/MG Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or other unexpected behavior.
  • To ensure accurate voltage output, it's essential to use a stable and accurate voltage reference (VREF) and to decouple the VREF pin with a capacitor to filter out noise. Additionally, the output voltage should be buffered with an op-amp or a voltage follower to prevent loading effects.
  • The maximum output current capability of the MCP47CVB02T-E/MG is 10 mA. Exceeding this limit may cause the output voltage to droop or the device to overheat.
  • The MCP47CVB02T-E/MG can be programmed using a 3-wire serial interface (SPI). The device has 7-bit registers that control the output voltage. The user needs to write the desired voltage code to the register using the SPI interface.
  • The MCP47CVB02T-E/MG is specified to operate over a temperature range of -40°C to +125°C. However, the device's accuracy and output voltage may vary with temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47CVB02T-E/MG Overview

Use the download button to access the MCP47CVB02T-E/MG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters
