MCP47CVB12-E/UN footprint, schematic symbol and 3D model by Microchip

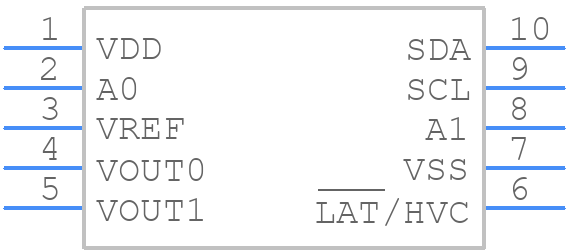

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP47CVB12-E/UN
Part Number MCP47CVB12-E/UN
Manufacturer Microchip
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 10-lead MSOP
Released Date May 26, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCP47CVB12-E/UN Details

Manufacturer Part Number:
MCP47CVB12-E/UN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-8
Pin Count:
10
Manufacturer Package Code:
MSOP-10
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
22 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
19
Analog Output Voltage-Max:
5.5 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
SERIAL
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e3
Length:
3 mm
Linearity Error-Max (EL):
0.0244%
Number of Bits:
10
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Screening Level:
MIL-STD-883
Seated Height-Max:
1.1 mm
Settling Time-Nom (tstl):
16 µs
Supply Current-Max:
0.72 mA
Supply Voltage-Nom:
5.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
3 mm

MCP47CVB12-E/UN Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD before applying VREF. This ensures that the internal voltage regulator is powered up correctly and the device operates within specifications.
To ensure accurate voltage output, it is essential to use a high-quality external voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a heavy load.
The maximum output current that the MCP47CVB12-E/UN can supply is 10 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
The MCP47CVB12-E/UN can be programmed using a 3-wire serial interface (SPI). The desired output voltage is set by writing a 12-bit code to the device's internal register. The code can be calculated using the formula provided in the datasheet.
The MCP47CVB12-E/UN operates over a temperature range of -40°C to +125°C. However, the output voltage accuracy may degrade at extreme temperatures.

Trust Checks

System Verified

MCP47CVB12-E/UN Overview

Use the download button to access the MCP47CVB12-E/UN schematic symbol, PCB footprint, and 3D model.
