MCP47CVB28-20E/ST - Microchip

Description: Digital to Analog Converters - DAC Qctal Channel, 12-Bi t, volatile, I2C DA

Download MCP47CVB28-20E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

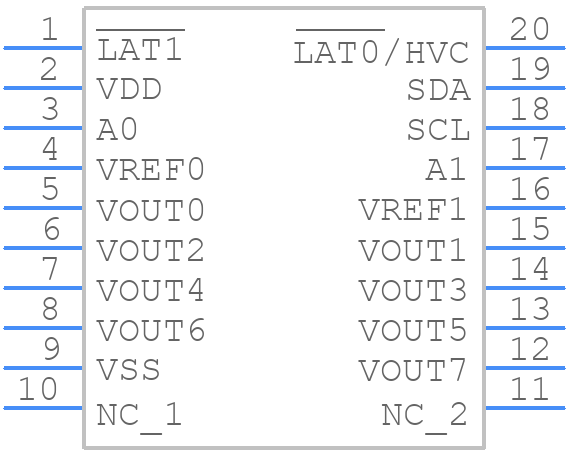

MCP47CVB28-20E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CVB28-20E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 20-LEAD PLASTIC THIN SHRINK SMALL OUTLINE(ST)
click to zoom
3D Models
MCP47CVB28-20E/ST - Microchip - 3D model - Small Outline Packages - 20-LEAD PLASTIC THIN SHRINK SMALL OUTLINE(ST)
click to zoom

MCP47CVB28-20E/ST Details

  • Manufacturer Part Number:

    MCP47CVB28-20E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.024414%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.38 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm
