Part Image

MCP47CVB28-E/ML - Microchip

Description: Digital to Analog Converters - DAC Qctal Channel, 12-Bi t, volatile, I2C DA

Download MCP47CVB28-E/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

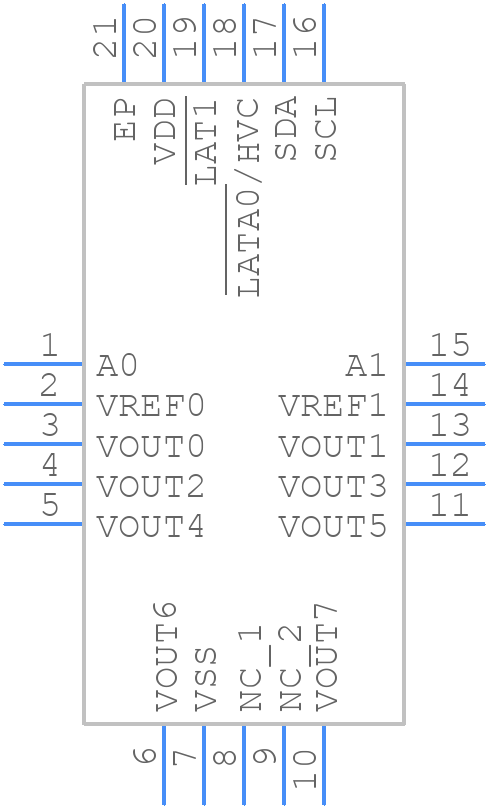

Symbol
MCP47CVB28-E/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CVB28-E/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead (ML) - 4x4x0.9 mm Body [QFN]
click to zoom
3D Models
MCP47CVB28-E/ML - Microchip - 3D model - Quad Flat No-Lead - 20-Lead (ML) - 4x4x0.9 mm Body [QFN]
click to zoom

MCP47CVB28-E/ML Details

  • Manufacturer Part Number:

    MCP47CVB28-E/ML

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.024414%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.38 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

MCP47CVB28-E/ML Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or other unexpected behavior.
  • To ensure accurate voltage output, it's essential to use a high-precision voltage reference (VREF) and to minimize noise on the VREF pin. Additionally, ensure that the output voltage is within the specified range and that the device is operated within the recommended temperature range.
  • The maximum capacitive load that the MCP47CVB28-E/ML can drive is 10 nF. Exceeding this limit may affect the device's stability and accuracy.
  • To implement a voltage buffer or amplifier, connect the output of the MCP47CVB28-E/ML to the input of an op-amp, and then connect the output of the op-amp to the desired load. Ensure that the op-amp is properly biased and compensated for stability.
  • The thermal resistance of the QFN-28 package is typically around 30-40°C/W. This value can be used to estimate the junction temperature of the device based on the ambient temperature and power dissipation.
