MCP47FEB28T-E/MQ - Microchip

Description: Digital to Analog Converters - DAC Octal Channel, 12-Bit, EEPROM, I2C DAC

Download MCP47FEB28T-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

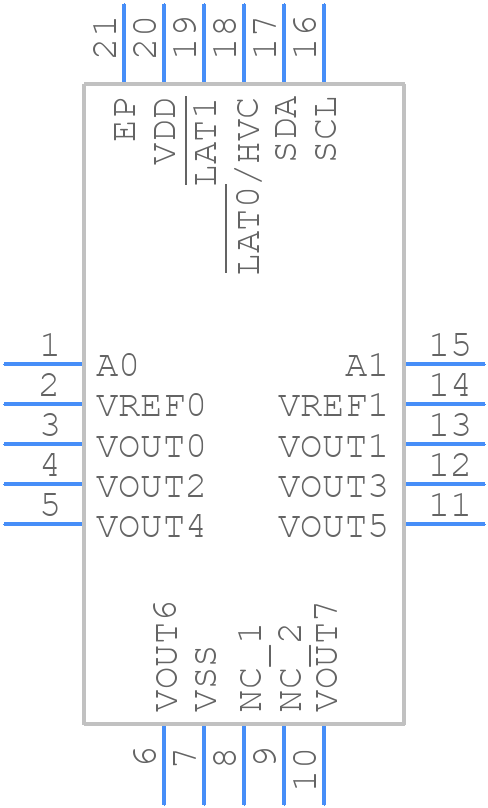

MCP47FEB28T-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47FEB28T-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Plastic Quad Flat, No Lead Package (MQ) - 5x5x1.0 mm
click to zoom
3D Models
MCP47FEB28T-E/MQ - Microchip - 3D model - Quad Flat No-Lead - 20-Lead Plastic Quad Flat, No Lead Package (MQ) - 5x5x1.0 mm
click to zoom

MCP47FEB28T-E/MQ Details

  • Manufacturer Part Number:

    MCP47FEB28T-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-06-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.146484375%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    7.8 µs

  • Supply Current-Max:

    3 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP47FEB28T-E/MQ Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP47FEB28T-E/MQ evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To ensure accurate voltage output, it's essential to follow proper calibration procedures, use a stable reference voltage, and minimize noise on the analog output pins. Additionally, consider using a voltage reference with low temperature coefficient and low noise to improve overall system accuracy.
  • The maximum output current of the MCP47FEB28T-E/MQ is 10 mA per channel. However, it's recommended to limit the output current to 5 mA per channel to ensure reliable operation and minimize power consumption.
  • The MCP47FEB28T-E/MQ can be interfaced with a microcontroller using the SPI or I2C interface. Microchip provides example code and application notes for popular microcontrollers, such as the PIC microcontrollers, to help with the interface implementation.
  • The MCP47FEB28T-E/MQ has a power-on reset (POR) circuit that initializes the device to a default state upon power-up. The POR circuit ensures that the device outputs are in a high-impedance state, and the internal registers are reset to their default values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47FEB28T-E/MQ Overview

Use the download button to access the MCP47FEB28T-E/MQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
