MCP47FVB12A0-E/ST - Microchip

Description: Digital to Analog Converters - DAC Dual channel 10bit volatile, I2C DAC

Download MCP47FVB12A0-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

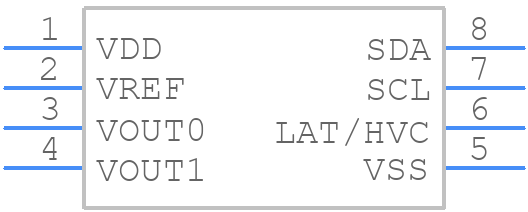

Symbol
MCP47FVB12A0-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47FVB12A0-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead ST TSSOP
click to zoom
3D Models
MCP47FVB12A0-E/ST - Microchip - 3D model - Small Outline Packages - 8 Lead ST TSSOP
click to zoom

MCP47FVB12A0-E/ST Details

  • Manufacturer Part Number:

    MCP47FVB12A0-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    TSSOP-8

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog Output Voltage-Max:

    5.46 V

  • Analog Output Voltage-Min:

    0.01 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP47FVB12A0-E/ST Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP47FVB12A0-E/ST involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VREF pin.
  • To ensure accurate voltage reference, it's recommended to use a high-precision voltage reference source, such as the MCP1541, and to decouple the VREF pin with a low-ESR capacitor. Additionally, the VREF pin should be connected to a quiet analog ground to minimize noise.
  • The recommended clock frequency for the MCP47FVB12A0-E/ST is between 10 kHz and 50 kHz. However, the device can operate at clock frequencies up to 100 kHz, but with reduced performance.
  • The output voltage scaling of the MCP47FVB12A0-E/ST can be handled by using an external resistor divider network or an op-amp based scaling circuit. The output voltage can be scaled up or down depending on the application requirements.
  • The thermal management strategy for the MCP47FVB12A0-E/ST involves using a heat sink or a thermal pad to dissipate heat. The device has a thermal pad on the bottom of the package, which can be connected to a heat sink or a thermal pad on the PCB.
