MCP48CMB24-E/ML - Microchip

Description: Digital to Analog Converters - DAC Quad Channel, 12-Bit , MTP, SPI DAC

Download MCP48CMB24-E/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

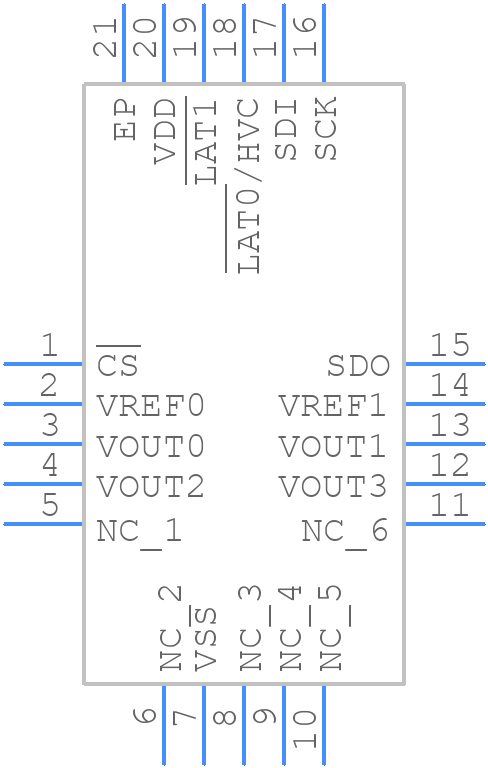

MCP48CMB24-E/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP48CMB24-E/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom
3D Models
MCP48CMB24-E/ML - Microchip - 3D model - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom

MCP48CMB24-E/ML Details

  • Manufacturer Part Number:

    MCP48CMB24-E/ML

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.024414%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    2.03 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

MCP48CMB24-E/ML Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or other unexpected behavior.
  • To ensure accurate voltage reference output, it is essential to decouple the VREF pin with a 0.1 μF ceramic capacitor to GND, and also to use a low-noise, low-impedance power supply for VDD. Additionally, ensure that the VREF pin is not loaded with excessive capacitance or resistance.
  • The maximum capacitive load that can be driven by the MCP48CMB24-E/ML's digital outputs is 100 pF. Exceeding this limit may cause signal degradation, ringing, or even device malfunction.
  • The MCP48CMB24-E/ML is a voltage reference device and not a voltage buffer or amplifier. If a voltage buffer or amplifier is required, an external op-amp or buffer IC should be used. The MCP48CMB24-E/ML's output can be used as a reference input to the external amplifier or buffer.
  • The thermal shutdown temperature of the MCP48CMB24-E/ML is typically around 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage. Normal operation will resume when the device temperature drops below 150°C.
