MCP48CVB08-20E/ST - Microchip

Description: Digital to Analog Converters - DAC Octal Channel, 8-Bit , volatile, SPI DAC

Download MCP48CVB08-20E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

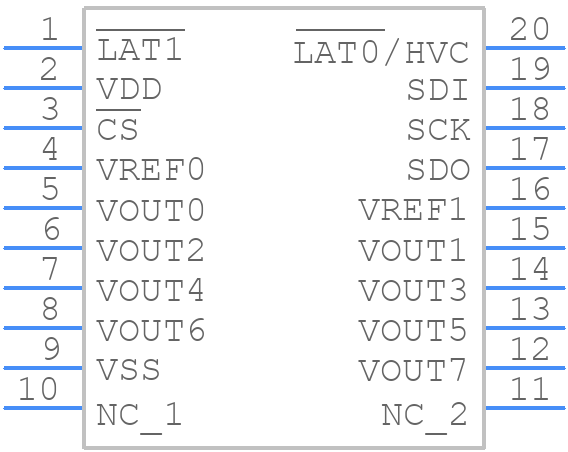

MCP48CVB08-20E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP48CVB08-20E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 20-LEAD PLASTIC THIN SHRINK SMALL OUTLINE (ST) - 4.4mm BODY [TSOP]
click to zoom
3D Models
MCP48CVB08-20E/ST - Microchip - 3D model - Small Outline Packages - 20-LEAD PLASTIC THIN SHRINK SMALL OUTLINE (ST) - 4.4mm BODY [TSOP]
click to zoom

MCP48CVB08-20E/ST Details

  • Manufacturer Part Number:

    MCP48CVB08-20E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0390625%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MCP48CVB08-20E/ST Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up or other unexpected behavior.
  • To ensure accurate voltage output, make sure to use a high-quality external reference voltage (VREF) and follow proper PCB layout and routing guidelines to minimize noise and interference. Additionally, calibrate the device according to the datasheet recommendations.
  • The maximum capacitive load that the MCP48CVB08-20E/ST can drive is 100 pF. Exceeding this limit may cause instability or oscillations in the output voltage.
  • Yes, the MCP48CVB08-20E/ST can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage (VREF). This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • To handle thermal considerations, ensure good thermal dissipation by providing adequate heat sinking and airflow around the device. Also, follow the recommended operating temperature range and power dissipation limits to prevent overheating and ensure reliable operation.
