MCP48FEB21-E/UN - Microchip

Description: Microchip MCP48FEB21-E/UN, 12 bit DAC, 10-Pin MSOP

Download MCP48FEB21-E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

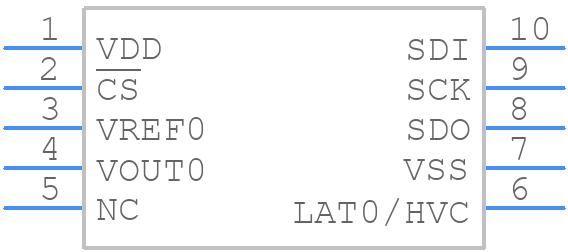

MCP48FEB21-E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP48FEB21-E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-lead plastic micro small outline package (un)
click to zoom
3D Models
MCP48FEB21-E/UN - Microchip - 3D model - Small Outline Packages - 10-lead plastic micro small outline package (un)
click to zoom

MCP48FEB21-E/UN Details

  • Manufacturer Part Number:

    MCP48FEB21-E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog Output Voltage-Max:

    5.46 V

  • Analog Output Voltage-Min:

    0.01 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1465%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7.8 µs

  • Supply Current-Max:

    1.9 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP48FEB21-E/UN Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents potential latch-up conditions.
  • To minimize noise and ensure accurate conversions, keep the analog input traces short and away from digital signals, use a solid ground plane, and decouple the power supplies with capacitors. Additionally, consider using a separate analog ground plane and a quiet analog power supply.
  • The maximum clock frequency for the MCP48FEB21-E/UN is 50 MHz. Exceeding this frequency may result in inaccurate conversions or device malfunction.
  • To handle overvoltage conditions, use external voltage limiting resistors or clamping diodes to prevent damage to the device. Additionally, consider using input protection circuits, such as a voltage divider or a clamp circuit, to limit the input voltage to within the specified range.
  • To synchronize the MCP48FEB21-E/UN with an external clock source, use the SYNC pin to synchronize the internal clock with the external clock signal. Ensure that the external clock frequency is within the specified range and that the clock signal is clean and stable.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP48FEB21-E/UN Overview

Use the download button to access the MCP48FEB21-E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP48, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
