MCP4901T-E/MS - Microchip

Description: Digital to Analog Converters - DAC Single 12-bit DAC w/SPI interface

Download MCP4901T-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

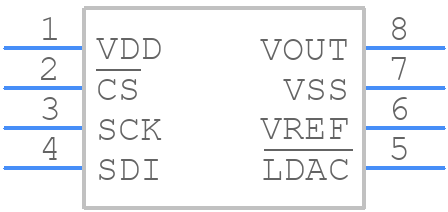

MCP4901T-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4901T-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MCP4901T-E/MS - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MCP4901T-E/MS Details

  • Manufacturer Part Number:

    MCP4901T-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP4901T-E/MS Frequently Asked Questions (FAQs)

  • The maximum output current of the MCP4901T-E/MS is 25 mA per channel. However, it's recommended to limit the output current to 10 mA per channel to ensure reliable operation and to prevent overheating.
  • To ensure accurate voltage output, it's essential to use a high-quality external reference voltage (VREF) and to decouple the power supply (VDD) and VREF pins with suitable capacitors. Additionally, the output voltage should be buffered with an op-amp if it's not being used directly by a high-impedance load.
  • The settling time of the MCP4901T-E/MS is typically around 10 μs, but it can vary depending on the output voltage, load capacitance, and other factors. It's recommended to consult the datasheet and application notes for more information on settling time and how to optimize it for specific applications.
  • The MCP4901T-E/MS is a unipolar DAC, meaning it can only output voltages between 0 V and VREF. However, it can be configured as a bipolar DAC by using an external op-amp and some additional circuitry. Consult the datasheet and application notes for more information on how to achieve bipolar operation.
  • The MCP4901T-E/MS can be interfaced with a microcontroller using a standard SPI (Serial Peripheral Interface) protocol. The microcontroller should be configured as a master, and the MCP4901T-E/MS should be configured as a slave. Consult the datasheet and application notes for more information on the SPI protocol and how to implement it in your specific application.
