MCP4902-E/P - Microchip

Description: Microchip MCP4902-E/P, 2-channel 8 bit Serial DAC, 14-Pin PDIP

Download MCP4902-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

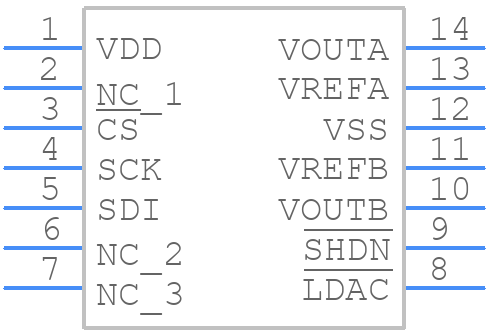

Symbol
MCP4902-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4902-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP 14
click to zoom
3D Models
MCP4902-E/P - Microchip - 3D model - Dual-In-Line Packages - PDIP 14
click to zoom

MCP4902-E/P Details

  • Manufacturer Part Number:

    MCP4902-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PDIP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MCP4902-E/P Frequently Asked Questions (FAQs)

  • The maximum output current of the MCP4902-E/P is 25 mA per channel. However, it's recommended to limit the output current to 10 mA per channel to ensure reliable operation and to prevent overheating.
  • To ensure accurate voltage output from the MCP4902-E/P, it's essential to use a high-quality external reference voltage source, such as a voltage reference IC or a precision voltage regulator. Additionally, make sure to follow proper PCB layout and routing guidelines to minimize noise and interference.
  • Yes, the MCP4902-E/P is compatible with 3.3V or 5V microcontrollers. The device's digital interface is 5V-tolerant, and it can operate with a supply voltage range of 2.7V to 5.5V. However, ensure that the microcontroller's output voltage levels are compatible with the MCP4902-E/P's input voltage levels.
  • The MCP4902-E/P has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. To handle these features, ensure that your system design includes a proper power-up sequence and a stable power supply. You can also use external circuitry, such as a voltage supervisor or a reset IC, to manage the power-on and brown-out conditions.
  • To minimize noise and interference, it's essential to follow proper PCB layout and routing guidelines for the MCP4902-E/P's analog and digital signals. Keep analog signals away from digital signals, use separate analog and digital ground planes, and avoid running analog signals near the device's digital interface pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4902-E/P Overview

Use the download button to access the MCP4902-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP49, or try a keyword search, such as Digital to Analog Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
