MCP4902T-E/SL - Microchip

Description: DAC 2-CH Resistor-String 8-bit Automotive 14-Pin SOIC N T/R

Download MCP4902T-E/SL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

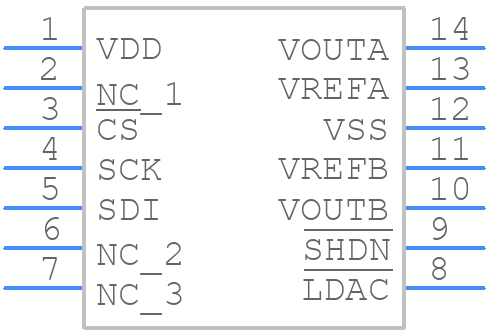

MCP4902T-E/SL - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4902T-E/SL - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead(SL) SOIC
click to zoom
3D Models
MCP4902T-E/SL - Microchip - 3D model - Small Outline Packages - 14-Lead(SL) SOIC
click to zoom

MCP4902T-E/SL Details

  • Manufacturer Part Number:

    MCP4902T-E/SL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, LEAD FREE, PLASTIC, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOIC-14

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

MCP4902T-E/SL Frequently Asked Questions (FAQs)

  • The output impedance of the MCP4902T-E/SL is approximately 10 ohms. This is not explicitly stated in the datasheet, but it can be calculated based on the output current capability and the voltage swings specified in the datasheet.
  • To ensure monotonicity when using the MCP4902T-E/SL, it is recommended to use a buffer or an op-amp to drive the output of the DAC. This helps to reduce the output impedance and ensures that the output voltage changes monotonically with the input code.
  • Yes, the MCP4902T-E/SL can be used in a multiple-master SPI bus environment. The DAC has a three-state output buffer that allows multiple masters to share the same bus. However, the user must ensure that the masters do not assert the CS (Chip Select) pin simultaneously, as this can result in bus contention.
  • The settling time of the MCP4902T-E/SL is not explicitly stated in the datasheet. However, based on the output slew rate and the output voltage swing, the settling time can be estimated to be around 1-2 us.
  • No, the MCP4902T-E/SL is not suitable for driving a transformer. The DAC is designed to drive resistive loads and the output current is limited to 20 mA. Driving a transformer requires a high-current output stage, which is not available on the MCP4902T-E/SL.
