MCP6043-I/SN - Microchip

Description: Sngl 1.6V 14KHz OpAmp w/CS,MCP6043-I/SN

Download MCP6043-I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

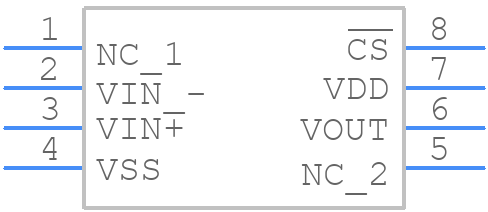

Symbol
MCP6043-I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6043-I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP6043-I/SN
click to zoom
3D Models
MCP6043-I/SN - Microchip - 3D model - Small Outline Packages - MCP6043-I/SN
click to zoom

MCP6043-I/SN Details

  • Manufacturer Part Number:

    MCP6043-I/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    62 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.003 V/us

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    14

  • Voltage Gain-Min:

    56200

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6043-I/SN Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6043-I/SN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 720mW at 25°C ambient temperature. For the MSOP package, it is 560mW at 25°C ambient temperature.
  • To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
  • To minimize noise and EMI, it is recommended to follow good PCB layout and routing practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it is recommended to use a low-impedance power supply and to avoid running high-frequency signals near the op-amp.
  • The MCP6043-I/SN is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It is recommended to derate the power dissipation and to ensure proper heat sinking to prevent overheating in high-temperature environments.
  • The input bias current of the MCP6043-I/SN is typically around 1pA, but it can vary depending on the operating conditions. To calculate the input bias current, you can use the formula: IB = (VCC - VEE) / (2 * RIN), where IB is the input bias current, VCC is the positive supply voltage, VEE is the negative supply voltage, and RIN is the input resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6043-I/SN Overview

Use the download button to access the MCP6043-I/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP60, or try a keyword search, such as Operational Amplifiers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
