MCP6054-E/ST - Microchip

Description: Quad 1.8V 300kHz Op Amp, E temp

Download MCP6054-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

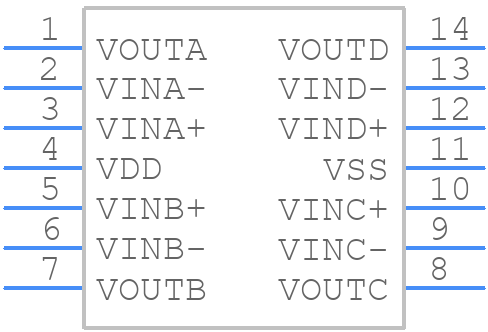

Symbol
MCP6054-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6054-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom
3D Models
MCP6054-E/ST - Microchip - 3D model - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom

MCP6054-E/ST Details

  • Manufacturer Part Number:

    MCP6054-E/ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    74 dB

  • Common-mode Reject Ratio-Nom:

    91 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    150 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.15 V/us

  • Supply Current-Max:

    0.18 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    385

  • Voltage Gain-Min:

    56200

  • Wideband:

    NO

  • Width:

    4.4 mm

MCP6054-E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Use a star topology for the analog inputs and keep the analog and digital power supplies separate. Refer to the Microchip application note AN1341 for more details.
  • Calibration involves adjusting the offset and gain of each channel. Use the built-in calibration registers to adjust the offset and gain. You can also use external calibration signals to fine-tune the calibration. Refer to the datasheet section 4.4 for more details.
  • The maximum sampling rate of the MCP6054-E/ST is 200 ksps (kilosamples per second) per channel. However, this rate can be limited by the system clock frequency, analog input bandwidth, and digital filter settings.
  • Yes, the MCP6054-E/ST can be used in a ratiometric configuration, where the analog input voltage is proportional to the reference voltage. This configuration can provide better accuracy and noise rejection.
  • Use external voltage limiting circuits, such as voltage dividers or clamping diodes, to protect the analog inputs from overvoltage conditions. For undervoltage conditions, use a voltage reference or a buffer amplifier to ensure a stable input voltage.
