MCP6141-E/SNVAO - Microchip

Description: Operational Amplifiers - Op Amps Single 1.6V 100 kHz OP, E temp

Download MCP6141-E/SNVAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

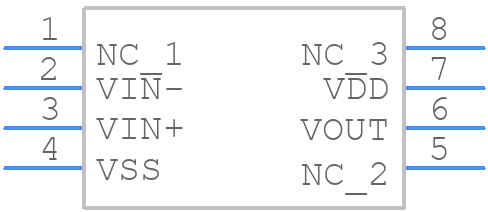

MCP6141-E/SNVAO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6141-E/SNVAO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MCP6141-E/SNVAO - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MCP6141-E/SNVAO Details

  • Manufacturer Part Number:

    MCP6141-E/SNVAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    62 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    24 V/us

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    100

  • Voltage Gain-Min:

    56234

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6141-E/SNVAO Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6141-E/SNVAO is 670 mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance from junction to ambient (125°C/W).
  • To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22 pF) between the output and the inverting input pins to compensate for the internal pole. This is because the MCP6141-E/SNVAO has a high gain-bandwidth product, which can cause oscillations without proper compensation.
  • To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, avoid routing high-frequency signals near the op-amp's inputs and outputs.
  • The MCP6141-E/SNVAO is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure that you follow proper thermal management practices, such as providing adequate heat sinking and airflow.
  • Choose bypass capacitors with a low equivalent series resistance (ESR) and a high self-resonant frequency to ensure that they can effectively filter out high-frequency noise. A 0.1-10 μF ceramic capacitor is a good starting point, but the optimal value may vary depending on the specific application and PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6141-E/SNVAO Overview

Use the download button to access the MCP6141-E/SNVAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP61, or try a keyword search, such as Operational Amplifiers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
