MCP6241-E/MC - Microchip

Description: Operational Amplifiers - Op Amps Single 1.8V 550 kHz OP E Temp

Download MCP6241-E/MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

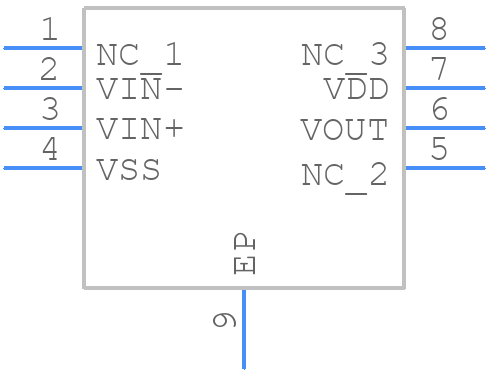

MCP6241-E/MC - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6241-E/MC - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-LEAD_DFN(MC)
click to zoom
3D Models
MCP6241-E/MC - Microchip - 3D model - Small Outline No-lead - 8-LEAD_DFN(MC)
click to zoom

MCP6241-E/MC Details

  • Manufacturer Part Number:

    MCP6241-E/MC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    550

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    2 mm

MCP6241-E/MC Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6241-E/MC is dependent on the package type and ambient temperature. For the 8-pin PDIP package, the maximum power dissipation is 720mW at 25°C. For the 8-pin SOIC package, it is 590mW at 25°C. Refer to the datasheet for more information on power dissipation calculations.
  • To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
  • To minimize noise and EMI, it is recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it is recommended to use a low-impedance power supply and to avoid running high-frequency signals near the op-amp.
  • The MCP6241-E/MC is rated for operation up to 125°C, but the performance may degrade at high temperatures. It is recommended to consult the datasheet for temperature-related specifications and to consider using a thermally-enhanced package or a different op-amp if high-temperature operation is required.
  • The input bias current of the MCP6241-E/MC is typically specified as a maximum value in the datasheet. To calculate the input bias current, you can use the formula: IB = (VCC - VEE) / (2 * RIN), where IB is the input bias current, VCC and VEE are the supply voltages, and RIN is the input resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6241-E/MC Overview

Use the download button to access the MCP6241-E/MC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP62, or try a keyword search, such as Operational Amplifiers
