The maximum power dissipation of the MCP6241-E/P is dependent on the package type and ambient temperature. For the PDIP package, it is 670 mW at 25°C, and for the SOIC package, it is 500 mW at 25°C. Refer to the thermal resistance and power dissipation sections in the datasheet for more information.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10-22 pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole and ensures stability. Additionally, make sure to follow proper PCB layout and decoupling practices to minimize noise and oscillations.
The recommended decoupling capacitor value for the MCP6241-E/P is 0.1 μF to 1 μF, with a voltage rating that matches or exceeds the supply voltage. A ceramic capacitor with a low ESR (Equivalent Series Resistance) is recommended. Place the decoupling capacitor as close as possible to the VDD and VSS pins to minimize noise and ensure proper operation.
While the MCP6241-E/P is an op-amp, it can be used as a comparator in certain applications. However, it is not recommended for high-speed or high-precision comparator applications due to its limited slew rate and bandwidth. If you need a dedicated comparator, consider using a device specifically designed for that purpose, such as the MCP6541 or MCP6551.
The MCP6241-E/P has built-in ESD protection, but it is still important to follow proper ESD handling practices when handling the device. Use an ESD wrist strap or mat, and ensure that your workspace and equipment are ESD-safe. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to your circuit design to provide additional protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP6241-E/P Overview

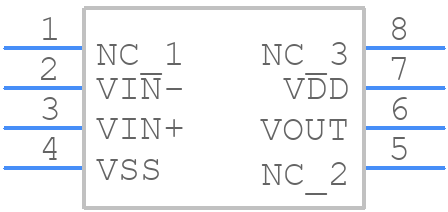

Use the download button to access the MCP6241-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP62,
or try a keyword search, such as Operational Amplifiers
