MCP6281T-E/SN - Microchip

Description: Operational Amplifiers - Op Amps Single 5MHz Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail 8-SOIC,25 mA,2.2 V,6 V -40°C ~ 125°C

Download MCP6281T-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

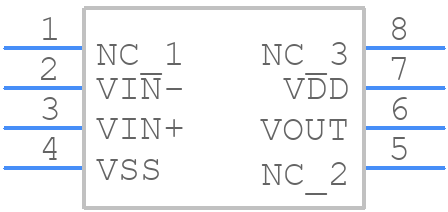

Symbol
MCP6281T-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6281T-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
click to zoom
3D Models
MCP6281T-E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
click to zoom

MCP6281T-E/SN Details

  • Manufacturer Part Number:

    MCP6281T-E/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    0.57 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6281T-E/SN Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6281T-E/SN is 670 mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance from junction to ambient (125°C/W).
  • To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100 nF) between the output and the inverting input to compensate for the internal pole. This is because the MCP6281T-E/SN has a high gain-bandwidth product, which can cause oscillations if not properly compensated.
  • To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it's recommended to use a shielded cable or a twisted pair for the input signal to reduce electromagnetic interference.
  • The MCP6281T-E/SN is rated for operation up to 125°C, but it's recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and perform thorough testing before using the device in a high-temperature environment.
  • The MCP6281T-E/SN has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, it's recommended to avoid touching the device's pins or handling the device in a way that could generate static electricity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6281T-E/SN Overview

Use the download button to access the MCP6281T-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP62, or try a keyword search, such as Operational Amplifiers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
