MCP6284-E/P - Microchip

Description: Microchip MCP6284-E/P, Quad Op Amp, 5MHz Rail-Rail, 14-Pin PDIP

Download MCP6284-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

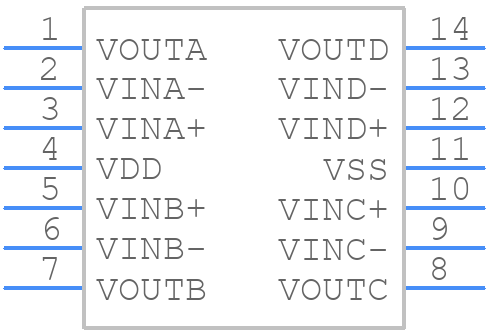

MCP6284-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6284-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-14-ren2
click to zoom
3D Models
MCP6284-E/P - Microchip - 3D model - Dual-In-Line Packages - DIP-14-ren2
click to zoom

MCP6284-E/P Details

  • Manufacturer Part Number:

    MCP6284-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PDIP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    2.28 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    7.62 mm

MCP6284-E/P Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6284-E/P is dependent on the package type and ambient temperature. For the PDIP package, it is 670 mW at 25°C, and for the QFN package, it is 450 mW at 25°C. However, it is recommended to derate the power dissipation based on the ambient temperature to ensure reliable operation.
  • To minimize noise and ensure optimal performance, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from noise sources. Additionally, it is recommended to place a 0.1 μF decoupling capacitor close to the power pins of the MCP6284-E/P to filter out high-frequency noise.
  • The recommended operating voltage range for the MCP6284-E/P is 2.7V to 5.5V. However, it can operate down to 2.5V with reduced performance. It is not recommended to operate the device outside of this range as it may affect its reliability and performance.
  • To protect the MCP6284-E/P from ESD, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-sensitive packaging and storage materials. Additionally, it is recommended to use ESD protection devices such as TVS diodes or ESD protection arrays on the PCB to protect the device from ESD events.
  • The typical input bias current of the MCP6284-E/P is 1.5 pA. This is a very low input bias current, making the device suitable for high-impedance applications such as photodiode amplifiers and sensor interfaces.
