MCP6293-E/MS - Microchip

Description: Single 10MHz OpAmp w/CS,MCP6293-E/MS

Download MCP6293-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

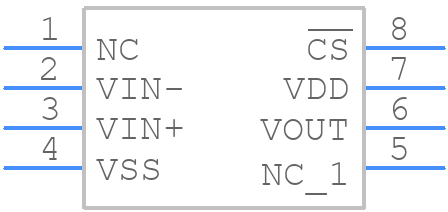

MCP6293-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6293-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MS MSOP
click to zoom
3D Models
MCP6293-E/MS - Microchip - 3D model - Small Outline Packages - 8 Lead MS MSOP
click to zoom

MCP6293-E/MS Details

  • Manufacturer Part Number:

    MCP6293-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, MO-187, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    3 mm

MCP6293-E/MS Frequently Asked Questions (FAQs)

  • Microchip recommends following good PCB layout practices, such as keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to place the op-amp near the signal source and use a star-ground configuration to minimize noise.
  • Microchip recommends powering up the op-amp in the following sequence: VDD, then VSS, and then the input signals. When powering down, reverse the sequence. Additionally, it's recommended to use a power-on reset circuit to ensure the op-amp is in a known state during power-up.
  • The MCP6293-E/MS can drive capacitive loads up to 1nF without oscillation. However, it's recommended to use a series resistor (Rs) to limit the capacitive loading and ensure stability. A general rule of thumb is to use Rs = 10 ohms for every 10pF of capacitive load.
  • The input bias current and input offset voltage can be compensated for by using a voltage divider or a resistive network at the input stage. Additionally, it's recommended to use a high-impedance input source and to minimize the input impedance to reduce the effects of input bias current and input offset voltage.
  • The thermal resistance of the MCP6293-E/MS package is typically around 120°C/W. To ensure the junction temperature remains within the recommended operating range, it's recommended to use a heat sink or a thermal pad, and to keep the ambient temperature below 70°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6293-E/MS Overview

Use the download button to access the MCP6293-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP62, or try a keyword search, such as Operational Amplifiers
