- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP633-E/SN
- Part Number MCP633-E/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Lead(SN) SOIC
- Released Date Apr 16, 2015
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP633-E/SN Details
-
Manufacturer Part Number:
MCP633-E/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3.90 MM, PLASTIC, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Mainland China, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
6 Weeks
MCP633-E/SN Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the MCP633-E/SN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 720mW at 25°C ambient temperature. For the MSOP package, it is 560mW at 25°C ambient temperature.
-
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
-
To minimize noise and EMI, it is recommended to follow good PCB layout practices such as keeping the signal traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. Additionally, it is recommended to place the op-amp close to the signal source and load, and to use a guard ring around the op-amp to reduce noise coupling.
-
The MCP633-E/SN is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It is recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating in high-temperature environments.
-
The choice of resistors for the feedback network depends on the desired gain, bandwidth, and noise performance. In general, it is recommended to use low-noise, high-precision resistors with a tolerance of 1% or better. The resistor values should be chosen to ensure that the op-amp is operated within its specified bandwidth and slew rate.
Trust Checks
Community Provided
System Verified
Community Approved
MCP633-E/SN Overview

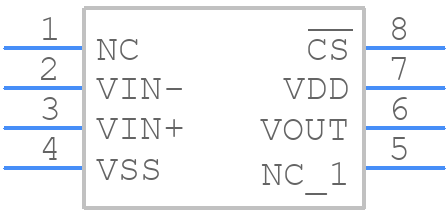

Use the download button to access the MCP633-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP63,
or try a keyword search, such as Operational Amplifiers
