MCP6472-E/SN - Microchip

Description: Microchip MCP6472-E/SN Low Power Op Amp, 2MHz Rail-Rail, 2 → 5.5 V, 8-Pin SOIC

Download MCP6472-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

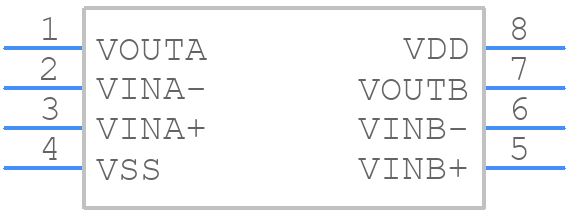

Symbol
MCP6472-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6472-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SST26VF016BT-104I/SN
click to zoom
3D Models
MCP6472-E/SN - Microchip - 3D model - Small Outline Packages - SST26VF016BT-104I/SN
click to zoom

MCP6472-E/SN Details

  • Manufacturer Part Number:

    MCP6472-E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.90 MM, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00035 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    88 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2000

  • Voltage Gain-Min:

    56200

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6472-E/SN Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6472-E/SN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 720mW at 25°C. For the MSOP package, it is 560mW at 25°C. Refer to the thermal resistance and power dissipation sections in the datasheet for more information.
  • To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
  • To minimize noise and EMI, it is recommended to follow good PCB layout and routing practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it is recommended to use a low-impedance power supply and to avoid running high-frequency signals near the op-amp.
  • The MCP6472-E/SN is rated for operation up to 125°C, but the performance may degrade at high temperatures. It is recommended to consult the datasheet and application notes for more information on high-temperature operation and to consider using a more temperature-stable op-amp if necessary.
  • The input bias current of the MCP6472-E/SN is typically specified as a maximum value in the datasheet. To calculate the input bias current, you can use the formula: IB = (VCC - VEE) / (2 * RIN), where IB is the input bias current, VCC is the positive supply voltage, VEE is the negative supply voltage, and RIN is the input resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6472-E/SN Overview

Use the download button to access the MCP6472-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP64, or try a keyword search, such as Operational Amplifiers
