A good PCB layout for the MCP6497T-E/SN involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and noise.
The choice of gain resistors depends on the specific application requirements, such as gain, bandwidth, and noise tolerance. A higher gain setting can provide better signal amplification, but may also increase noise and reduce bandwidth. A lower gain setting can provide better noise immunity, but may require additional amplification stages. The datasheet provides a gain resistor calculation formula, and it's recommended to consult the application notes for more guidance.
The maximum power dissipation of the MCP6497T-E/SN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 720mW at 25°C. To ensure that the device doesn't overheat, it's recommended to calculate the power dissipation based on the application's voltage and current requirements, and to provide adequate heat sinking and thermal management.
To protect the MCP6497T-E/SN from ESD and electrical overstress, it's recommended to follow proper handling and storage procedures, such as using anti-static bags and wrist straps. In the application, it's recommended to use ESD protection devices, such as TVS diodes, and to follow proper PCB design and layout practices to minimize the risk of electrical overstress.
The recommended operating voltage range for the MCP6497T-E/SN is 2.7V to 5.5V. Operating outside of this range can affect the device's performance, reliability, and lifespan. Operating at lower voltages can reduce the device's bandwidth and gain, while operating at higher voltages can increase power consumption and reduce reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP6497T-E/SN Overview

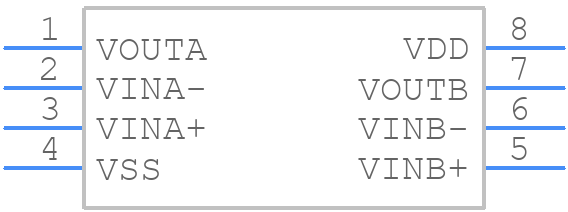

Use the download button to access the MCP6497T-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP64,
or try a keyword search, such as Operational Amplifiers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
