MCP652-E/MF - Microchip

Description: Operational Amplifiers - Op Amps Dual 50MHz OP Auto-cal E temp

Download MCP652-E/MF Model
Schematic

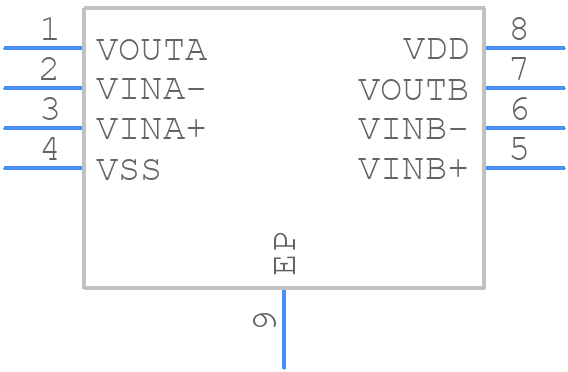

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP652-E/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MF 3x3x0.9
click to zoom
3D Models
MCP652-E/MF - Microchip  - 3D model - Small Outline No-lead - MF 3x3x0.9
click to zoom

MCP652-E/MF Details

  • Manufacturer Part Number:

    MCP652-E/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Min:

    68 dB

  • Common-mode Reject Ratio-Nom:

    84 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    18 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    50000

  • Voltage Gain-Min:

    25118

  • Wideband:

    NO

  • Width:

    3 mm

MCP652-E/MF Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications. Key considerations include keeping the input and output traces short, using a solid ground plane, and minimizing parasitic inductance.
  • The output capacitor value depends on the specific application requirements, such as output voltage ripple, transient response, and stability. A general guideline is to use a capacitor with a value between 1-10 μF, with a voltage rating that exceeds the output voltage. It's also important to consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor.
  • The maximum input voltage for the MCP652-E/MF is 6.5V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage remains within the recommended operating range to maintain device reliability and performance.
  • The MCP652-E/MF is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, when designing for high-temperature applications.
  • To ensure EMC with the MCP652-E/MF, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, consider the device's radiated and conducted emissions, and ensure that the system meets relevant EMC standards and regulations.
