MCP6542-E/MS - Microchip

Description: Analog Comparators Dual 1.6V Push/ Pull Comp

Download MCP6542-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

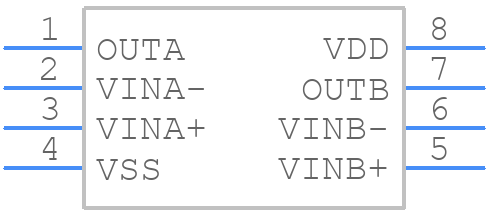

MCP6542-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6542-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom
3D Models
MCP6542-E/MS - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom

MCP6542-E/MS Details

  • Manufacturer Part Number:

    MCP6542-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    4000 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP6542-E/MS Frequently Asked Questions (FAQs)

  • Microchip recommends a compact layout with the device placed close to the power source, and the input and output capacitors placed as close as possible to the device. A ground plane is also recommended to reduce noise and improve thermal performance.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the recommended range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The maximum ambient temperature range for the MCP6542-E/MS is -40°C to +125°C. However, the device's junction temperature should not exceed 150°C to ensure reliable operation.
  • Yes, the MCP6542-E/MS is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended layout and placement guidelines, and ensure that the device operates within the recommended temperature range.
  • The output voltage of the MCP6542-E/MS can be calculated using the following formula: VOUT = (VIN x (1 + R1/R2)), where VIN is the input voltage, R1 is the resistance of the feedback resistor, and R2 is the resistance of the divider resistor.
