MCP6567-E/MS - Microchip

Description: Microchip MCP6567-E/MS Dual Comparator, Open Drain O/P, 1.8 → 5.5 V 8-Pin MSOP

Download MCP6567-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

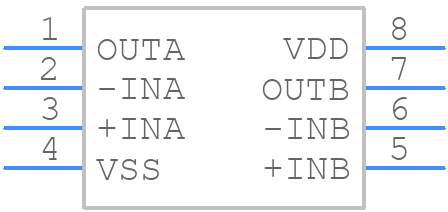

Symbol
MCP6567-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6567-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 24FC256-I/MS
click to zoom
3D Models
MCP6567-E/MS - Microchip - 3D model - Small Outline Packages - 24FC256-I/MS
click to zoom

MCP6567-E/MS Details

  • Manufacturer Part Number:

    MCP6567-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    56 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.13 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP6567-E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6567-E/MS involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to keep the input and output traces as short as possible.
  • The gain resistor values for the MCP6567-E/MS depend on the desired gain and the input signal amplitude. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the trade-off between gain and bandwidth.
  • The maximum input signal amplitude that the MCP6567-E/MS can handle without saturating is approximately 5.5V peak-to-peak. Exceeding this limit may cause the amplifier to saturate, resulting in distortion and reduced performance.
  • To ensure proper biasing for single-supply operation, connect the VREF pin to a voltage divider that sets the midpoint of the supply voltage. This will set the output common-mode voltage to the midpoint of the supply voltage, allowing for maximum output swing.
  • The recommended power-up sequence for the MCP6567-E/MS is to apply the power supply voltage (VDD) before applying the input signals. This ensures that the internal biasing circuitry is established before the input signals are applied, preventing latch-up or other issues.
