- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP6L02T-E/SN
- Part Number MCP6L02T-E/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SN
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP6L02T-E/SN Details
-
Manufacturer Part Number:
MCP6L02T-E/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3.90 MM, LEAD FREE, PLASTIC, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Taiwan, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
6 Weeks
MCP6L02T-E/SN Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP6L02T-E/SN involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input filter capacitors. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor (C2) and to keep the power traces as short as possible.
-
The input capacitor (C1) should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, depending on the input voltage and frequency. The output capacitor (C2) should be a low-ESR ceramic capacitor with a value between 1uF to 22uF, depending on the output voltage and frequency. It's also important to consider the capacitor's voltage rating, temperature range, and ESR.
-
The maximum input voltage for the MCP6L02T-E/SN is 42V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 36V to ensure optimal performance and reliability.
-
To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 1uF, keep the output traces as short as possible, and avoid using long output cables. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor (C2).
-
The thermal resistance of the MCP6L02T-E/SN package is 125°C/W (junction-to-ambient) and 45°C/W (junction-to-case). It's recommended to use a thermal pad or a heat sink to improve the thermal performance of the device.
Trust Checks
Community Provided
System Verified
Community Approved
MCP6L02T-E/SN Overview

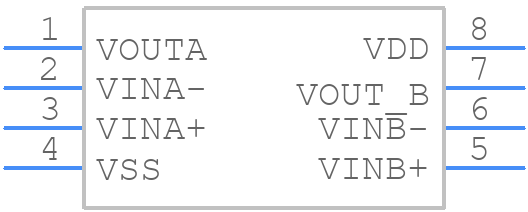

Use the download button to access the MCP6L02T-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6L,
or try a keyword search, such as Operational Amplifiers
