- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP6S21-I/SN
- Part Number MCP6S21-I/SN
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MCP6S21-I/SN
- Released Date Apr 16, 2015
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP6S21-I/SN Details
-
Manufacturer Part Number:
MCP6S21-I/SN
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.150 INCH, PLASTIC, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
SOIC-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Microchip Technology Inc
MCP6S21-I/SN Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP6S21-I/SN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane can help to reduce noise and improve performance.
-
The gain resistor values for the MCP6S21-I/SN depend on the specific application and the desired gain. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific requirements of your application. It's also important to consider the tolerance of the resistors and the operating temperature range.
-
The maximum input voltage that the MCP6S21-I/SN can handle is ±5.5V. Exceeding this voltage can cause damage to the device. It's important to ensure that the input voltage is within the recommended range to ensure reliable operation.
-
To filter out noise and interference, you can use a combination of passive and active filtering techniques. For example, you can use a low-pass filter to remove high-frequency noise, and a notch filter to remove specific frequencies. Additionally, using shielding and grounding techniques can help to reduce electromagnetic interference.
-
The typical settling time for the MCP6S21-I/SN is around 10-15 microseconds, depending on the specific application and the gain setting. This is the time it takes for the output to settle to within 1% of its final value after a step change in the input.
Trust Checks
Community Provided
System Verified
Community Approved
MCP6S21-I/SN Overview

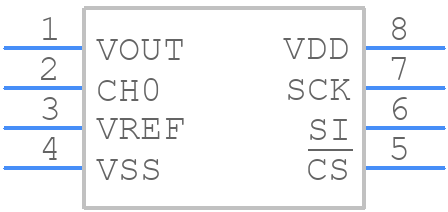

Use the download button to access the MCP6S21-I/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6S,
or try a keyword search, such as Other Signal Circuits
