MCP6V02-E/MD - Microchip

Description: Microchip MCP6V02-E/MD, Dual Auto Zero Op Amp, 1.3MHz Rail-Rail, 1.8 → 5.5 V, 8-Pin DFN

Download MCP6V02-E/MD Model
Schematic

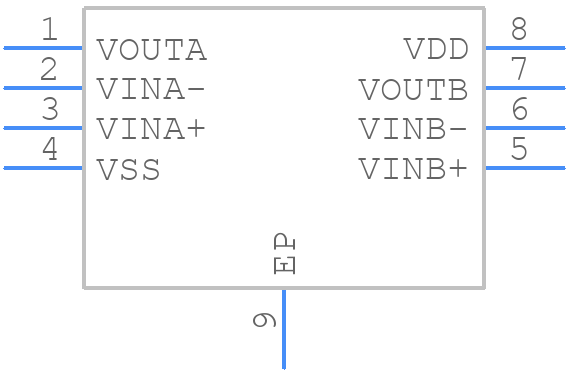

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP6V02-E/MD - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MD) – 4x4x0.9 mm Body [DFN]
click to zoom
3D Models
MCP6V02-E/MD - Microchip  - 3D model - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MD) – 4x4x0.9 mm Body [DFN]
click to zoom

MCP6V02-E/MD Details

  • Manufacturer Part Number:

    MCP6V02-E/MD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    3162000

  • Wideband:

    NO

  • Width:

    4 mm

MCP6V02-E/MD Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6V02-E/MD involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a low-ESR capacitor for the input bypass capacitor and to keep the output capacitor close to the output pin.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 1uF is recommended, and the capacitor should have a low ESR. Additionally, the output capacitor should be placed close to the output pin, and the input capacitor should be placed close to the input pin.
  • The maximum input voltage that the MCP6V02-E/MD can handle is 42V. Exceeding this voltage can cause damage to the device.
  • The MCP6V02-E/MD is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • The power dissipation of the MCP6V02-E/MD can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP6V02-E/MD Overview

Use the download button to access the MCP6V02-E/MD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP6V, or try a keyword search, such as Operational Amplifiers
