MCP6V54-E/SL - Microchip

Description: • High DC Precision: - VOS Drift: 36 nV/°C (max.) - VOS: 15 µV (max.) - Open-Loop Gain: 140 dB (min.) - PSRR: 134 dB (min.) - CMRR: 135 dB (min.) • Low Noise: - 10.2 nV/√ Hz at 1 kHz - Eni: 0.21 µVP-P, f = 0.1 Hz to 10 Hz • Low Power: - IQ: 470 µA/Amplifier (typ.) - Wide Single or Dual Supply Voltage Range: 4.5V to 45V, ±2.25V to ±22.5V • Easy to Use: - Input Range incl. Negative Rail - Rail-to-Rail Output - EMI Filtered Inputs - Gain Bandwidth Product: 2 MHz - Slew Rate 1.2V/µs - Unity G

Download MCP6V54-E/SL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

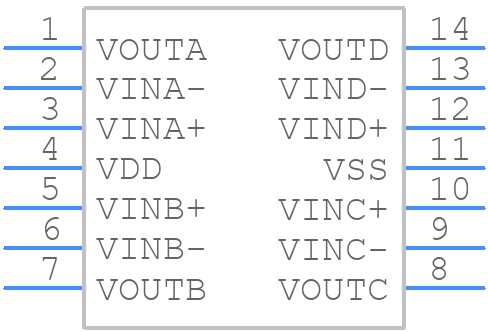

MCP6V54-E/SL - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V54-E/SL - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14 LEAD SOIC (SL)
click to zoom
3D Models
MCP6V54-E/SL - Microchip - 3D model - Small Outline Packages - 14 LEAD SOIC (SL)
click to zoom

MCP6V54-E/SL Details

  • Manufacturer Part Number:

    MCP6V54-E/SL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOIC-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.004 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    135 dB

  • Common-mode Reject Ratio-Nom:

    150 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TRAY

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    2.68 mA

  • Supply Voltage Limit-Max:

    49.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2000

  • Voltage Gain-Min:

    1584893.1924

  • Wideband:

    NO

  • Width:

    3.9 mm

MCP6V54-E/SL Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MCP6V54-E/SL is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
  • To ensure stability, it's essential to follow proper PCB layout practices, use adequate decoupling capacitors, and consider adding a compensation capacitor between the output and the inverting input. Additionally, the datasheet provides guidance on stability analysis and compensation techniques.
  • The recommended operating voltage range for the MCP6V54-E/SL is 2.7V to 5.5V, although the device can operate down to 2.2V with reduced performance. Operating outside this range may affect the device's reliability and performance.
  • While the MCP6V54-E/SL can be used as a comparator, it's not the most suitable device for this application. The device is optimized for linear amplifier applications, and its comparator performance may not be as good as a dedicated comparator IC. If you need a comparator, consider using a dedicated comparator IC like the MCP654 or MCP655.
  • The MCP6V54-E/SL has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during device handling and PCB assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device and the entire circuit from ESD events.
