MCP6V67T-E/MNY - Microchip

Description: MICROCHIP - MCP6V67T-E/MNY         - Operational Amplifier, 2 Amplifier, 1 MHz, 0.45 V/µs, 1.8V to 5.5V, TDFN-EP, 8 Pins

Download MCP6V67T-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

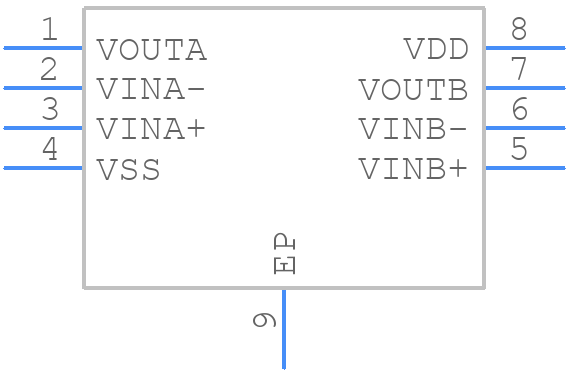

MCP6V67T-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V67T-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-1
click to zoom
3D Models
MCP6V67T-E/MNY - Microchip - 3D model - Small Outline No-lead - DFN-1
click to zoom

MCP6V67T-E/MNY Details

  • Manufacturer Part Number:

    MCP6V67T-E/MNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2019-10-21

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    111 dB

  • Common-mode Reject Ratio-Nom:

    134 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.45 V/us

  • Supply Current-Max:

    0.26 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    316227

  • Wideband:

    NO

  • Width:

    2 mm

MCP6V67T-E/MNY Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP6V67T-E/MNY involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer to minimize noise.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high capacitance value. A 10uF ceramic capacitor with an ESR of less than 1 ohm is recommended. Additionally, the output capacitor should be placed close to the device to minimize parasitic inductance.
  • The maximum input voltage that the MCP6V67T-E/MNY can handle is 36V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage is within the recommended range to ensure the device's reliability and performance.
  • The MCP6V67T-E/MNY is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the MCP6V67T-E/MNY, start by checking the input voltage and ensuring it's within the recommended range. Next, verify that the output capacitor is properly connected and has a suitable value. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range. If the issue persists, consult the datasheet and application notes for further guidance.
