MCP6V92T-E/MS - Microchip

Description: Precision Amplifiers CAN FD Transceiver with Silent Mode 10 MHz, Zero-Drift Op Amps

Download MCP6V92T-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

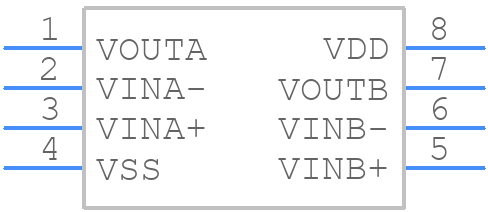

MCP6V92T-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V92T-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MS MSOP
click to zoom
3D Models
MCP6V92T-E/MS - Microchip - 3D model - Small Outline Packages - 8 Lead MS MSOP
click to zoom

MCP6V92T-E/MS Details

  • Manufacturer Part Number:

    MCP6V92T-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Date Of Intro:

    2016-03-03

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    118 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    9.5 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    1995262

  • Wideband:

    NO

  • Width:

    3 mm

MCP6V92T-E/MS Frequently Asked Questions (FAQs)

  • Microchip recommends a star-ground configuration, with the device's GND pin connected to a solid ground plane. Additionally, keep the input and output traces short and away from noise sources, and use a 0.1uF decoupling capacitor between the VIN pin and GND.
  • To ensure stability, make sure the input and output capacitors are properly selected and placed close to the device. Also, ensure the input voltage is within the recommended range, and the output load is within the specified range. Finally, avoid using long input traces and keep the device away from noise sources.
  • The maximum power dissipation of the MCP6V92T-E/MS is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, and 0.7W at 85°C ambient temperature.
  • Yes, the MCP6V92T-E/MS is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures, so it's essential to follow the recommended operating conditions and thermal management guidelines.
  • To troubleshoot issues with the MCP6V92T-E/MS, start by verifying the input voltage and output load are within the recommended ranges. Check for proper PCB layout and decoupling, and ensure the device is not overheating. Use an oscilloscope to check for oscillations or noise on the input and output, and consult the datasheet and application notes for guidance.
