MCP6V94-E/ST - Microchip

Description: Precision Amplifiers Quad Zero Drift Op Amp E Temp

Download MCP6V94-E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

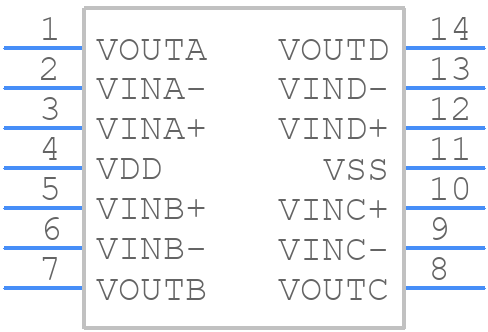

MCP6V94-E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP6V94-E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]
click to zoom
3D Models
MCP6V94-E/ST - Microchip - 3D model - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]
click to zoom

MCP6V94-E/ST Details

  • Manufacturer Part Number:

    MCP6V94-E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2016-03-03

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    118 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    9.5 V/us

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    1995262

  • Wideband:

    NO

  • Width:

    4.4 mm

MCP6V94-E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends a star-ground configuration, with the GND pin connected to a solid ground plane. Additionally, keep the input and output traces separate and avoid running them parallel to each other to minimize noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid overloading the output and ensure that the input voltage is within the recommended range.
  • The maximum power dissipation of the MCP6V94-E/ST is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • The MCP6V94-E/ST is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specifications in the target application.
  • To troubleshoot issues with the MCP6V94-E/ST, start by verifying the input voltage and current, and ensure that the device is properly powered. Check the output voltage and current, and verify that the load is within the recommended specifications. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance on troubleshooting common issues.
