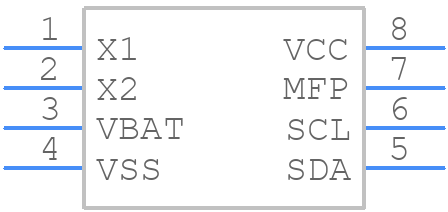

MCP7940N-I/P - Microchip

MCP7940N-I/P Details

• Manufacturer Part Number:

  MCP7940N-I/P

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  PDIP-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Clock Frequency-Max:

  0.032 MHz

• Information Access Method:

  SERIAL(I2C)

• Interrupt Capability:

  Y

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.271 mm

• Number of Terminals:

  8

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (words):

  64

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  5.334 mm

• Supply Current-Max:

  0.4 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time-Min:

  SECONDS

• Volatile:

  YES

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
