MCP9600-E/MX - Microchip

Description: Board Mount Temperature Sensors Thermocouple to I2C converter

Download MCP9600-E/MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

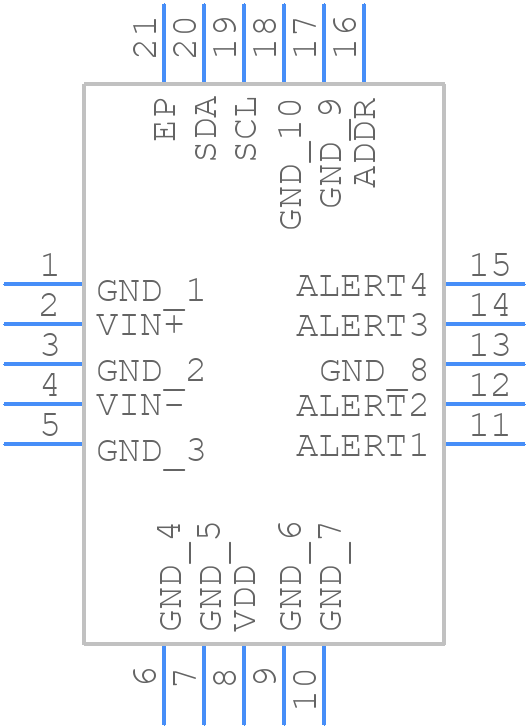

MCP9600-E/MX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9600-E/MX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MQFN-20
click to zoom
3D Models
MCP9600-E/MX - Microchip - 3D model - Quad Flat No-Lead - MQFN-20
click to zoom

MCP9600-E/MX Details

  • Manufacturer Part Number:

    MCP9600-E/MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    MQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Weeks

  • Date Of Intro:

    2016-06-01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)

MCP9600-E/MX Frequently Asked Questions (FAQs)

  • The MCP9600-E/MX can measure temperatures from -20°C to 125°C, with an accuracy of ±1°C.
  • The MCP9600-E/MX is designed to handle thermal gradients and thermal shock. It has a thermocouple input that can withstand thermal gradients up to 10°C/s and thermal shock up to 100°C/s.
  • The response time of the MCP9600-E/MX is typically 10 ms, allowing for fast and accurate temperature measurements.
  • Yes, the MCP9600-E/MX can be used with multiple thermocouple types, including K, J, T, N, E, and B types, with automatic thermocouple type detection.
  • The MCP9600-E/MX has built-in cold junction compensation, which eliminates the need for an external cold junction compensator.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP9600-E/MX Overview

Use the download button to access the MCP9600-E/MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
