MCP9600T-E/MX - Microchip

Description: Board Mount Temperature Sensors Thermocouple to I2C converter

Download MCP9600T-E/MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

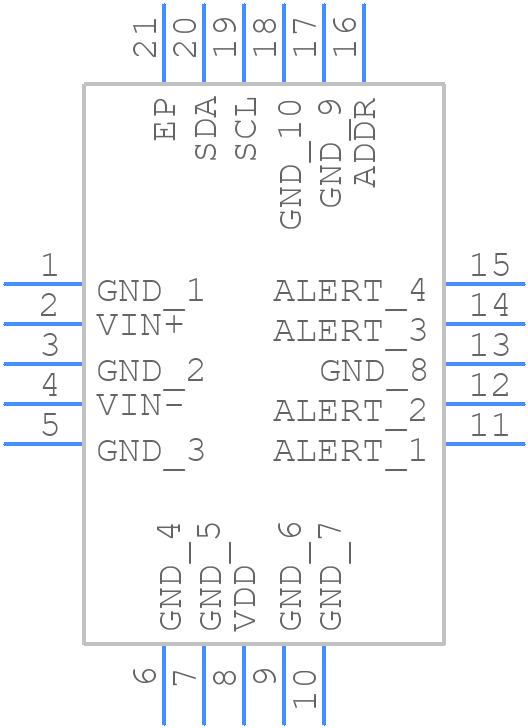

Symbol
MCP9600T-E/MX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9600T-E/MX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (NU) 20-Lead [MQFN]dddd
click to zoom
3D Models
MCP9600T-E/MX - Microchip - 3D model - Quad Flat No-Lead - (NU) 20-Lead [MQFN]dddd
click to zoom

MCP9600T-E/MX Details

  • Manufacturer Part Number:

    MCP9600T-E/MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    MQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Date Of Intro:

    2016-06-01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)

MCP9600T-E/MX Frequently Asked Questions (FAQs)

  • It is recommended to place the MCP9600T-E/MX close to the thermocouple, use a ground plane, and keep the analog and digital traces separate to minimize noise. Additionally, use a low-ESR capacitor for the VCC bypass capacitor and place it close to the VCC pin.
  • Calibration involves adjusting the internal offset and gain of the device to match the specific thermocouple type and application. This can be done using the built-in calibration registers or through external calibration using a precision voltage source and a thermocouple simulator.
  • The MCP9600T-E/MX is compatible with K, J, T, N, E, and B type thermocouples. The recommended configuration is to use a thermocouple with a high-impedance input and a cold junction compensation (CJC) sensor to ensure accurate temperature measurements.
  • The MCP9600T-E/MX has a built-in CJC circuit that can be enabled or disabled depending on the application. If enabled, the device will automatically compensate for the cold junction temperature. If disabled, an external CJC sensor can be used to provide the cold junction temperature to the device.
  • The MCP9600T-E/MX can measure temperatures from -200°C to 1350°C, depending on the thermocouple type and configuration used.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP9600T-E/MX Overview

Use the download button to access the MCP9600T-E/MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96, or try a keyword search, such as Other Signal Circuits
