- Part Number MCP9601-E/MX
- Manufacturer Microchip
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (NU) 20-Lead [MQFN]
- Released Date Feb 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP9601-E/MX Details
-
Manufacturer Part Number:
MCP9601-E/MX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
20
-
Manufacturer Package Code:
MQFN-20
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
6 Weeks
-
Date Of Intro:
2019-08-29
-
Manufacturer:
Microchip Technology Inc
MCP9601-E/MX Frequently Asked Questions (FAQs)
-
The datasheet recommends a 4-layer PCB with a solid ground plane, and placing the MCP9601-E/MX close to the thermocouple junction to minimize noise. Additionally, it's recommended to use a low-ESR capacitor for the VDD bypass capacitor.
-
The MCP9601-E/MX has an internal CJC sensor, but it's recommended to use an external CJC sensor for higher accuracy. The datasheet provides a formula to calculate the CJC temperature based on the internal sensor's output.
-
The datasheet doesn't specify a maximum wire length, but it recommends keeping the wire length as short as possible to minimize noise and errors. A good rule of thumb is to keep the wire length under 10 feet (3 meters).
-
The MCP9601-E/MX is optimized for K-type thermocouples, but it can be used with other thermocouple types with some adjustments. The datasheet provides a table to convert the output voltage to temperature for different thermocouple types.
-
The datasheet recommends a two-point calibration process: one at room temperature and another at a higher temperature. The calibration process involves adjusting the internal offset and gain registers to match the thermocouple's characteristics.
Trust Checks
Community Provided
System Verified
Community Approved
MCP9601-E/MX Overview

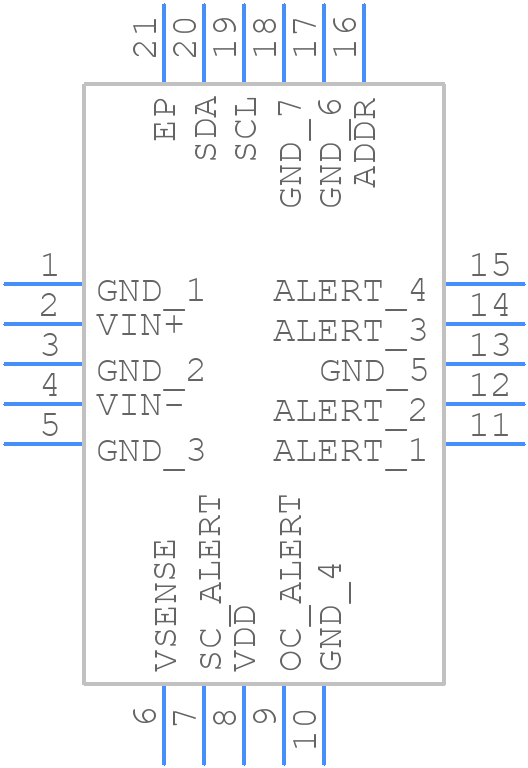

Use the download button to access the MCP9601-E/MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96,
or try a keyword search, such as Other Signal Circuits
