MCP9604-E/3YW - Microchip

Description: Board Mount Temperature Sensors 4-Channel Thermocouple IC w/ O/S detection - 40 C+125 C 2.7 V 300 uA

Download MCP9604-E/3YW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

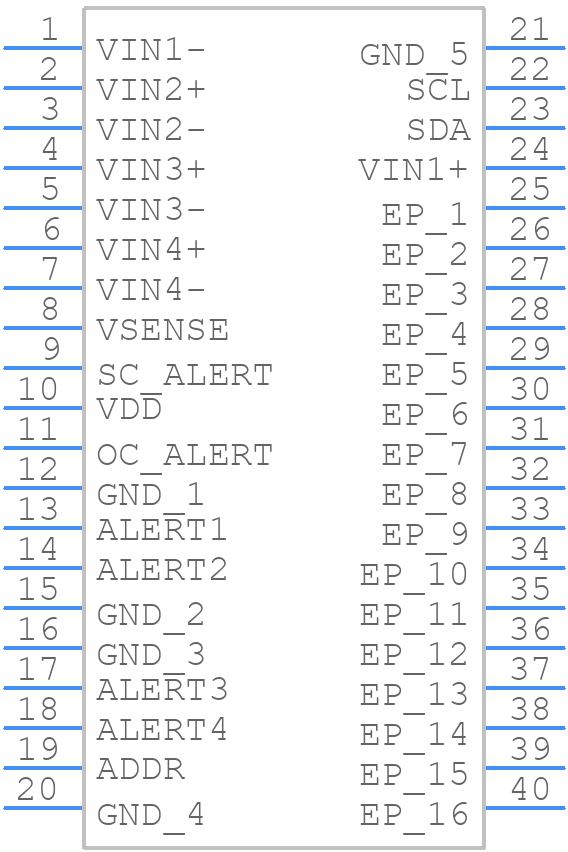

MCP9604-E/3YW - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9604-E/3YW - Microchip PCB footprint - Other - Other - 24-Lead Very Thin Fine Pitch Land Grid Array (3YW) - 5x5x1 mm Body [VFLGA]_2026-2.2
click to zoom
3D Models
MCP9604-E/3YW - Microchip - 3D model - Other - 24-Lead Very Thin Fine Pitch Land Grid Array (3YW) - 5x5x1 mm Body [VFLGA]_2026-2.2
click to zoom

MCP9604-E/3YW Details

  • Manufacturer Part Number:

    MCP9604-E/3YW

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    VFLGA-24

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP9604-E/3YW Overview

Use the download button to access the MCP9604-E/3YW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96, or try a keyword search, such as Other Signal Circuits
