MCP96L00T-E/MX - Microchip

Description: MICROCHIP - MCP96L00T-E/MX - TEMPERATURE SENSOR, 6DEG C, MQFN

Download MCP96L00T-E/MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

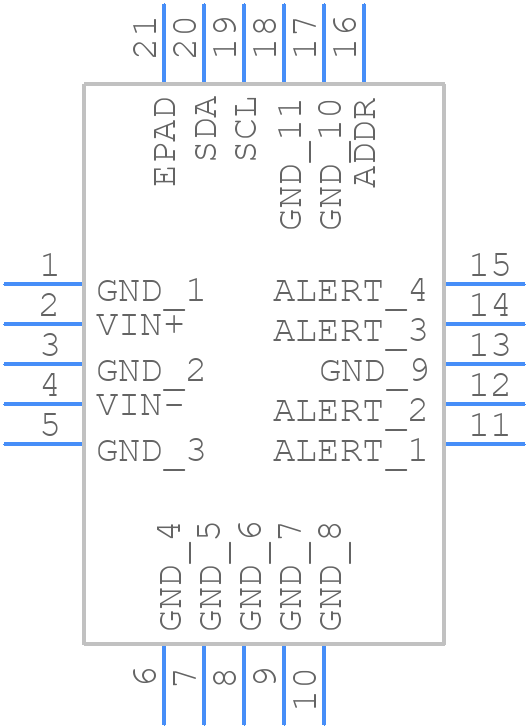

MCP96L00T-E/MX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP96L00T-E/MX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (NU) 20-Lead [MQFN]
click to zoom
3D Models
MCP96L00T-E/MX - Microchip - 3D model - Quad Flat No-Lead - (NU) 20-Lead [MQFN]
click to zoom

MCP96L00T-E/MX Details

  • Manufacturer Part Number:

    MCP96L00T-E/MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    MQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-08-17

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)
