MCP96L01-E/MX - Microchip

Description: Board Mount Temperature Sensors +/- 4.0C Thermocouple to I2C converter in 5mmx5mm QFN. This device has Opens/Shorts pin detection. This device supports K, J, T, N, S, E, B, and R type thermocouples.

Download MCP96L01-E/MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

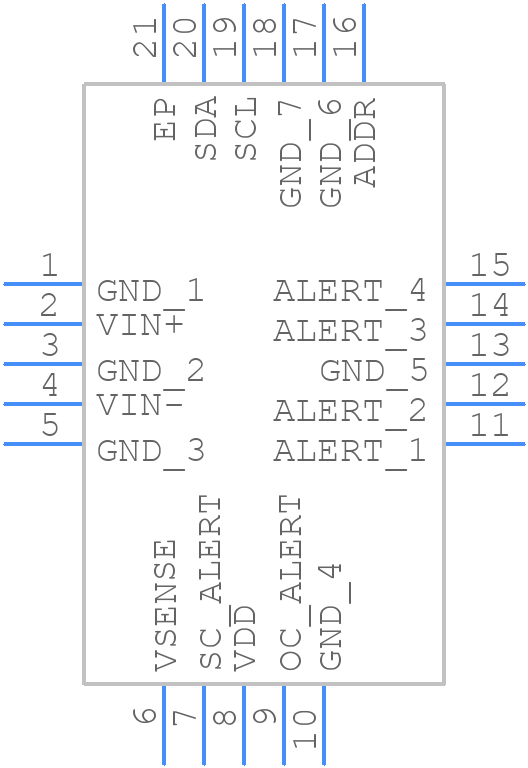

MCP96L01-E/MX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP96L01-E/MX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (NU) 20-Lead [MQFN]
click to zoom
3D Models
MCP96L01-E/MX - Microchip - 3D model - Quad Flat No-Lead - (NU) 20-Lead [MQFN]
click to zoom

MCP96L01-E/MX Details

  • Manufacturer Part Number:

    MCP96L01-E/MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    MQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2019-08-29

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)
