![MCP96L01T-E/MX - Microchip - 3D model - Quad Flat No-Lead - 20-Lead More Thin Plastic Quad Flat, No Lead Package (NU) - 5x5x1.0 mm Body [MQFN]](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP96L01T-E/MX
- Part Number MCP96L01T-E/MX
- Manufacturer Microchip
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 20-Lead More Thin Plastic Quad Flat, No Lead Package (NU) - 5x5x1.0 mm Body [MQFN]
- Released Date Feb 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP96L01T-E/MX Details
-
Manufacturer Part Number:
MCP96L01T-E/MX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
20
-
Manufacturer Package Code:
MQFN-20
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
13 Weeks
-
Date Of Intro:
2019-08-29
-
Manufacturer:
Microchip Technology Inc
MCP96L01T-E/MX Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP96L01T-E/MX involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
-
To ensure accurate temperature measurements, it's essential to calibrate the device, use a high-quality thermistor, and ensure good thermal contact between the thermistor and the device being measured. Additionally, it's recommended to use a low-noise power supply and to minimize electromagnetic interference (EMI) in the system.
-
The maximum cable length for the I2C interface of the MCP96L01T-E/MX depends on the system design and the capacitance of the cable. As a general rule, the maximum cable length is around 10-15 meters, but it's recommended to keep the cable length as short as possible to minimize signal degradation and noise.
-
Yes, the MCP96L01T-E/MX is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, it's recommended to use a vibration-resistant thermistor and to follow proper PCB design and assembly guidelines.
-
To troubleshoot issues with the MCP96L01T-E/MX, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the I2C interface is functioning correctly, and check for any signs of overheating or electrical overstress. If the issue persists, consult the datasheet and application notes, and consider contacting Microchip's technical support team for further assistance.
Trust Checks
Community Provided
System Verified
Community Approved
MCP96L01T-E/MX Overview

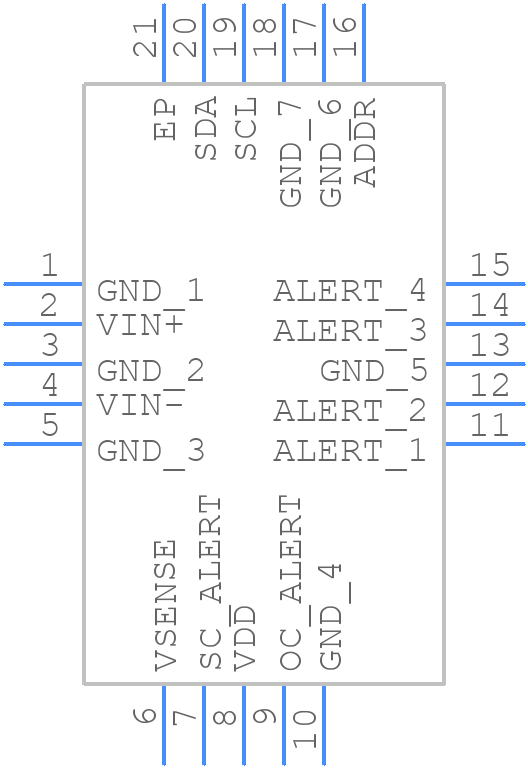

Use the download button to access the MCP96L01T-E/MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96,
or try a keyword search, such as Other Signal Circuits
