Description:Board Mount Temperature Sensors +/- 8.0C Thermocouple to I2C converter in 5mmx5mm QFN. This device has Opens/Shorts pin detection. This device supports K, J, T, N, S, E, B, and R type thermocouples.
Microchip recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper area on the other side of the PCB.
To ensure accurate temperature measurements, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize noise on the power supply and analog input lines. Additionally, the device should be operated within its specified temperature range, and the thermal pad should be properly connected to a heat sink or a large copper area on the PCB.
The maximum cable length for the analog input signals depends on the specific application and the noise environment. However, as a general guideline, Microchip recommends keeping the cable length as short as possible (less than 10 inches) to minimize noise pickup and signal degradation. If longer cables are necessary, shielded cables and proper termination techniques should be used.
Yes, the MCP96RL01T-E/MX is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration levels expected in the application.
To troubleshoot issues with the MCP96RL01T-E/MX, start by verifying the power supply voltage, clock frequency, and analog input signals. Check the device's configuration registers and ensure that they are properly set. Use a logic analyzer or oscilloscope to monitor the device's digital outputs and analog input signals. If issues persist, consult the datasheet and application notes, or contact Microchip's technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP96RL01T-E/MX Overview

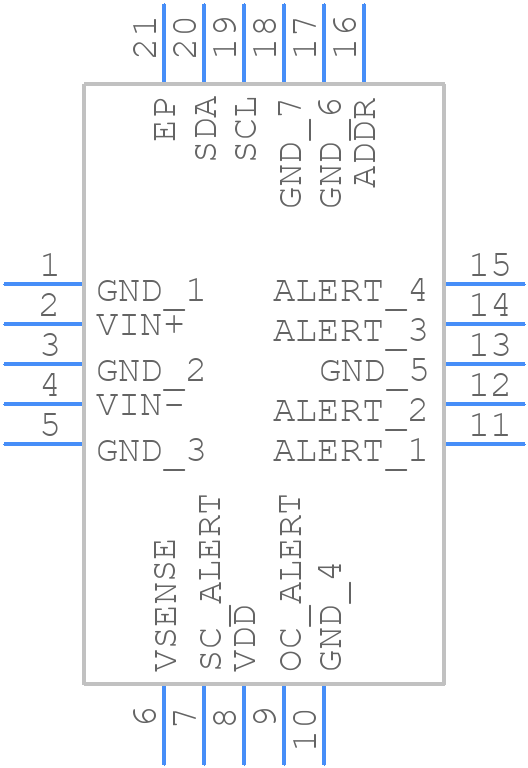

Use the download button to access the MCP96RL01T-E/MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP96,
or try a keyword search, such as Other Signal Circuits
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
