MCP9801-M/SN - Microchip

Description: Hi-Acc 12b Therm Sensor,Ser I/F,MCP9801

Download MCP9801-M/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

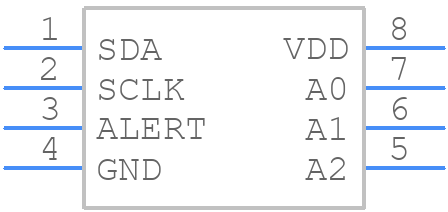

Symbol
MCP9801-M/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9801-M/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm Body [SOIC]
click to zoom
3D Models
MCP9801-M/SN - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm Body [SOIC]
click to zoom

MCP9801-M/SN Details

  • Manufacturer Part Number:

    MCP9801-M/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, MS-012, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

MCP9801-M/SN Frequently Asked Questions (FAQs)

  • The maximum cable length for the I2C interface is not explicitly stated in the datasheet, but as a general rule of thumb, it's recommended to keep the cable length under 1 meter (3.3 feet) to ensure reliable communication.
  • The MCP9801-M/SN is designed to handle thermal shock and rapid temperature changes. However, it's recommended to add thermal shielding or thermal mass to the device to reduce thermal gradients and ensure accurate temperature readings.
  • For optimal thermal performance, it's recommended to follow good thermal design practices, such as placing the device near a thermal pad or heat sink, using thermal vias, and minimizing thermal barriers on the PCB.
  • The MCP9801-M/SN has an internal calibration mechanism, but for high-accuracy temperature measurements, it's recommended to perform external calibration using a precision temperature reference and a calibration routine.
  • The response time of the MCP9801-M/SN to temperature changes is typically in the range of 1-5 seconds, depending on the thermal mass and thermal conductivity of the surrounding environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP9801-M/SN Overview

Use the download button to access the MCP9801-M/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP98, or try a keyword search, such as Temperature Sensors
