MCP9803-M/MSG - Microchip

Description: 2-Wire High-Accuracy Temperature Sensor

Download MCP9803-M/MSG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

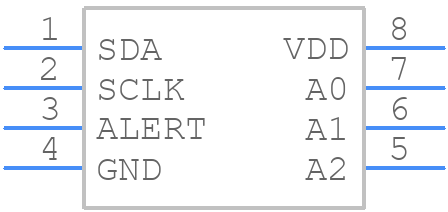

Symbol
MCP9803-M/MSG - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9803-M/MSG - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom
3D Models
MCP9803-M/MSG - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom

MCP9803-M/MSG Details

  • Manufacturer Part Number:

    MCP9803-M/MSG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MO-187, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

MCP9803-M/MSG Frequently Asked Questions (FAQs)

  • The maximum cable length for the I2C interface is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the cable length as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable communication.
  • The MCP9803-M/MSG is designed to handle thermal shock and rapid temperature changes. However, it's essential to ensure that the device is properly mounted and thermally connected to the PCB or heat source to minimize thermal gradients and ensure accurate temperature measurements.
  • The recommended power-up sequence is to apply VDD first, followed by VSS. This ensures that the internal voltage regulator is properly enabled and the device is powered up correctly.
  • Yes, the MCP9803-M/MSG is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB or heat source to minimize mechanical stress and ensure reliable operation.
  • The MCP9803-M/MSG has a built-in calibration mechanism that allows for high-accuracy temperature measurements. Refer to the datasheet for calibration procedures and equations to achieve the desired level of accuracy.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MCP9803-M/MSG Overview

Use the download button to access the MCP9803-M/MSG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP98, or try a keyword search, such as Temperature Sensors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
