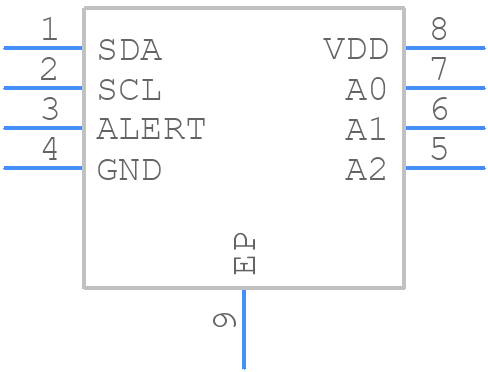

MCP9804-E/MC - Microchip

MCP9804-E/MC Frequently Asked Questions (FAQs)

• What is the maximum cable length for the I2C interface?
  The maximum cable length for the I2C interface is not explicitly stated in the datasheet, but as a general rule of thumb, it's recommended to keep the cable length under 1 meter (3.3 feet) to minimize signal degradation and ensure reliable communication.
• How do I handle thermal shock or rapid temperature changes?
  To handle thermal shock or rapid temperature changes, it's recommended to use a thermal interface material (TIM) between the sensor and the object being measured. This helps to improve thermal conductivity and reduce measurement errors. Additionally, consider using a low-pass filter or averaging algorithm to reduce noise and improve measurement stability.
• What is the recommended PCB layout for optimal thermal performance?
  For optimal thermal performance, it's recommended to follow a few PCB layout guidelines: keep the sensor away from heat sources, use a solid ground plane, and minimize thermal barriers between the sensor and the PCB. A good rule of thumb is to keep the sensor at least 1 mm away from any heat sources or high-current traces.
• How do I calibrate the sensor for high-accuracy applications?
  For high-accuracy applications, calibration is crucial. The MCP9804-E/MC has an internal calibration mechanism, but you may need to perform additional calibration steps depending on your specific application. Consider using a precision temperature reference source and a calibration algorithm to achieve the desired level of accuracy.
• What is the recommended power-up sequence for the MCP9804-E/MC?
  The recommended power-up sequence for the MCP9804-E/MC is to apply VDD first, followed by VSS. This ensures that the internal voltage regulator is properly initialized and the device is powered up correctly.
