MCP9804T-E/MS - Microchip

Description: Microchip MCP9804T-E/MS Temperature Sensor 8-Pin MSOP, -40 → +125 °C

Download MCP9804T-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

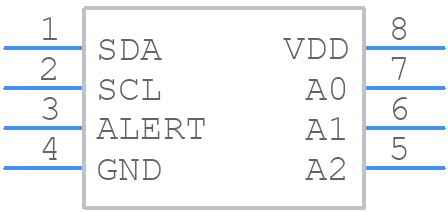

Symbol
MCP9804T-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP9804T-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - msop 8
click to zoom
3D Models
MCP9804T-E/MS - Microchip - 3D model - Small Outline Packages - msop 8
click to zoom

MCP9804T-E/MS Details

  • Manufacturer Part Number:

    MCP9804T-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

MCP9804T-E/MS Frequently Asked Questions (FAQs)

  • The MCP9804T-E/MS has an accuracy of ±1°C (max) from -20°C to 100°C, and ±2°C (max) from -40°C to 125°C.
  • The MCP9804T-E/MS has a programmable temperature range. You can configure it by writing to the TUpper and TLower registers to set the upper and lower temperature limits.
  • The conversion time of the MCP9804T-E/MS is approximately 30 ms.
  • Yes, the MCP9804T-E/MS supports multi-master I2C bus configuration. It has a 7-bit I2C address, which can be set by the A0, A1, and A2 pins.
  • The alert output (ALERT) is an open-drain output that goes low when the temperature exceeds the programmed limits. You can connect it to a microcontroller or other logic circuit to trigger an interrupt or alarm.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP9804T-E/MS Overview

Use the download button to access the MCP9804T-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP98, or try a keyword search, such as Temperature Sensors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
