MCR100JZHF2001 - ROHM Semiconductor

Description: ROHM MCR Series Thick Film Surface Mount Resistor 2512 Case 2kΩ ±1% 1W ±100ppm/°C

Download MCR100JZHF2001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCR100JZHF2001 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

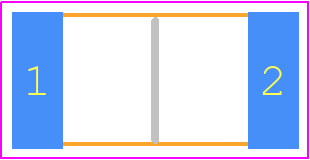

MCR100JZHF2001 - ROHM Semiconductor PCB footprint - Resistor Chip - Resistor Chip - 6432
click to zoom
3D Models
MCR100JZHF2001 - ROHM Semiconductor - 3D model - Resistor Chip - 6432
click to zoom

MCR100JZHF2001 Details

  • Manufacturer Part Number:

    MCR100JZHF2001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.55 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; IATF 16949

  • Resistance:

    2000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    200 V

MCR100JZHF2001 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the current rating at high temperatures.
  • The maximum allowable voltage for MCR100JZHF2001 is 200V. However, it's recommended to operate the device within the recommended voltage range (VCC = 100V to 200V) to ensure reliable operation.
  • ROHM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect against electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the recommended humidity range is 20% to 80% RH.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCR100JZHF2001 Overview

Use the download button to access the MCR100JZHF2001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCR10, or try a keyword search, such as Metal Glaze/Thick Film Resistors
