MCR1101-20-5 - ACEINNA

Description: Board Mount Current Sensors High Accuarcy 20A Current Sensor, 5V, Ratiometric, 1.5MHz 3dB BW, OCP, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16

Download MCR1101-20-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

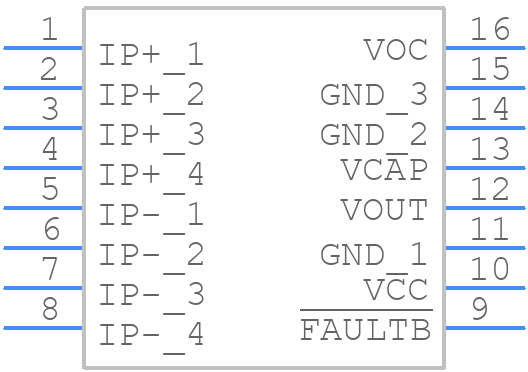

MCR1101-20-5 - ACEINNA - PCB symbol
click to zoom
PCB Footprints
MCR1101-20-5 - ACEINNA PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16LD
click to zoom
3D Models
MCR1101-20-5 - ACEINNA - 3D model - Small Outline Packages - SOIC-16LD
click to zoom

MCR1101-20-5 Details

  • Manufacturer Part Number:

    MCR1101-20-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-16

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Aceinna

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.54 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

MCR1101-20-5 Frequently Asked Questions (FAQs)

  • Aceinna provides a recommended PCB layout and design guide on their website, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise and interference.
  • The MCR1101-20-5 has built-in temperature compensation, and the temperature coefficients for the various parameters are provided in the datasheet. However, for more detailed information, engineers can contact Aceinna's technical support team for application notes and guidance on temperature compensation.
  • Aceinna provides a calibration procedure in the datasheet, which includes a series of steps to calibrate the device. Additionally, Aceinna offers a calibration tool and software that can be used to simplify the calibration process and ensure accurate results.
  • The MCR1101-20-5 is designed to meet various EMI and EMC standards, and Aceinna provides guidance on EMI and EMC considerations in the datasheet and application notes. Engineers can also contact Aceinna's technical support team for additional guidance on EMI and EMC compliance.
  • Aceinna provides a recommended power-up and power-down sequence in the datasheet, and engineers should follow this sequence to ensure proper operation and prevent damage to the device. Additionally, Aceinna recommends using a low-noise power supply and following proper power supply design practices to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCR1101-20-5 Overview

Use the download button to access the MCR1101-20-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCR11, or try a keyword search, such as Other Sensors/Transducers
