Description:Board Mount Current Sensors High Accuracy 5A Current Sensor, 5V, Ratiometric, 1.5MHz 3dB BW, OCP, Galvanic Isolation. UL/IEC/EN60950-1 and UL1577 certified. SOIC-16
Aceinna provides a recommended PCB layout and design guide on their website, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise and interference.
The MCR1101-5-5 has built-in temperature compensation, and the temperature coefficients for the various parameters are provided in the datasheet. However, for more detailed information, engineers can contact Aceinna's technical support team for application-specific guidance.
Aceinna provides a calibration guide and software tools for the MCR1101-5-5, which can be downloaded from their website. The calibration procedure involves applying specific magnetic fields and measuring the output, and the software tools help to simplify the process and ensure accurate results.
The MCR1101-5-5 has built-in magnetic shielding, but external magnetic interference can still affect its performance. Engineers should consider adding additional shielding or filtering measures, such as mu-metal shielding or ferrite beads, to minimize the impact of external interference.
The lead time and MOQ for the MCR1101-5-5 vary depending on the specific configuration and quantity required. Engineers should contact Aceinna's sales team for more information on lead times, pricing, and packaging options.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCR1101-5-5 Overview

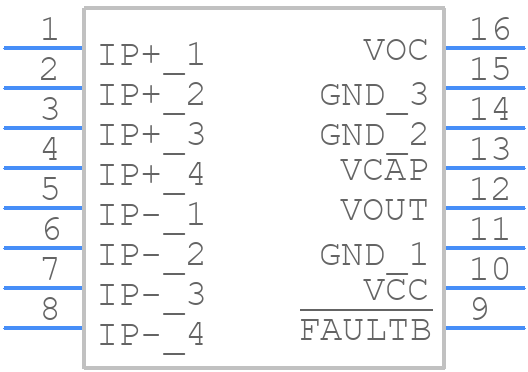

Use the download button to access the MCR1101-5-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCR11,
or try a keyword search, such as Other Sensors/Transducers
